Shed 02
![](https://freight.cargo.site/t/original/i/75e0c0af8bbab81d3cf7ccb5107f10441fe2a08fcc46e56293a821bacda2cd9c/IMG_0352.jpg)
![](https://freight.cargo.site/t/original/i/5b851dca4f293e1e25669d5f63157b3a915f1b202d47ae31ef1b7b3a0ef95492/a011_Pr_Shed-Detailed-A3-Plan-1.20-000.jpg)
![](https://freight.cargo.site/t/original/i/f0017fe2d39dee8996d01bf2bc61375fecb10865884f6d6203ecb6bb68066dbd/IMG_0355.jpg)
![](https://freight.cargo.site/t/original/i/a84aa5840e8b1e5d063f8603084da93e96ad2f511ca6a7252f3a2190aa65faf2/IMG_0249.jpg)
![](https://freight.cargo.site/t/original/i/09220abcf750f43db9269167191957368d712a1c6de2e9c314ad60bab4d95c3c/IMG_0330.jpg)
![](https://freight.cargo.site/t/original/i/fb1e03eaa3165e189d531c97e5b50a0b23b7eaeee09b6653c4d1180856772565/IMG_0346.jpg)

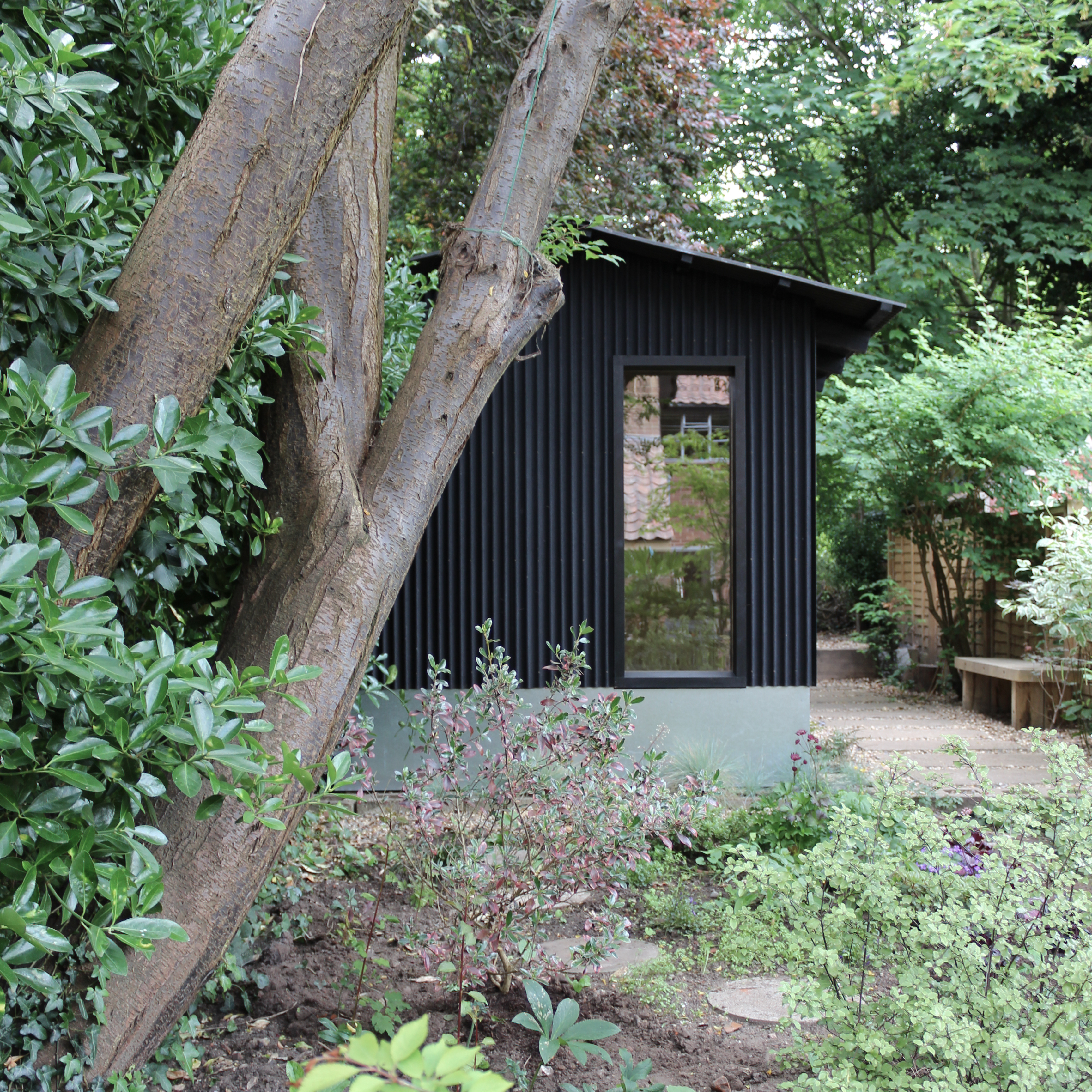

Shed 02 responds to a constrained position in a
long and narrow residential garden, to provide a small studio workshop, a
garden workstation and dedicated bike storage.
The construction process was driven by an economical approach to material use, to meet the brief and the design ambition.
A concrete slab was cast in situ to provide a footing and the internal floor finishes. The structural frame was constructed in studwork and spruce plywood panels on site, sized to suit off-the-shelf material sizes. Once erected, the panels provide the internal finishes for the spaces.
Externally, Onduline provides the corrugated finish, with galvanised steel panels providing a continuous plinth on all sides. Window and door frames, made in our workshop, completed the envelope of the building.
Cost: £12k
Status: Built
